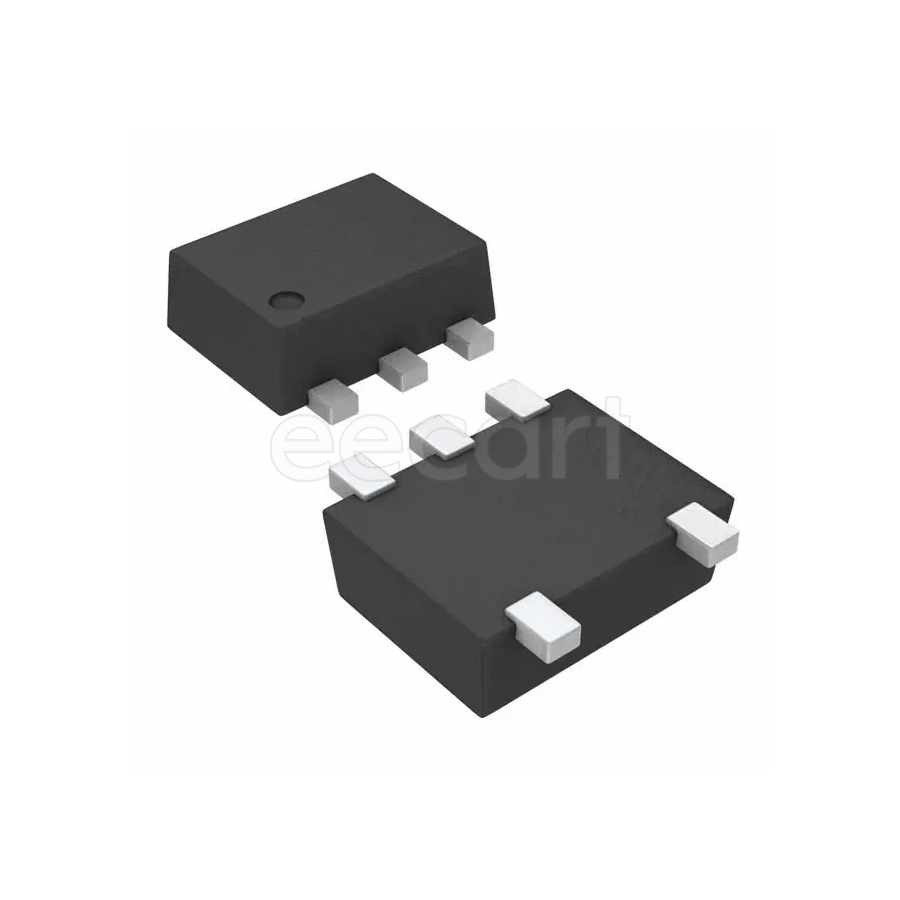

TPD3E001DRLR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPD3E001DRLR
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-5X3-5 SMD/SMT Working Voltage:5.5 V Breakdown Voltage:11 V 90 W 1.5 pF
| Parameter | Value |
|---|---|
| Capacitance | 1.5 pF |
| Length | 1.6 mm |
| Width | 1.2 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| Leakage Current | 1 nA |
| Height | 600 µm |
| Packaging | Reel |
| Depth | 1.2 mm |
| Thickness | 0.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Unidirectional |
| REACH SVHC | No SVHC |
| Weight | 2.806603 mg |
| Interface | USB |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 950 mV |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 900 mV |
| Max Supply Voltage (DC) | 5.5 V |
| Ambient Temperature Range High | 85 °C |
| Peak Pulse Current | 5.5 A |
| Number of Channels | 3 |
| Breakdown Voltage | 11 V |
| Max Supply Current | 100 nA |
| Direction(Counting Sequence) | Unidirectional |
| Nominal Supply Current | 1 nA |
| Min Breakdown Voltage | 11 V |
| Reverse Standoff Voltage | 5.5 V |
| Clamping Voltage | 105.5 V |
| Peak Pulse Power | 90 W |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 3 |
| Min Supply Voltage (DC) | 900 mV |
| Max Junction Temperature (Tj) | 150 °C |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Voltage ESD Contact | 8 kV |
| Voltage ESD Air Gap | 15 kV |
| Diode Capacitance | 1.5 pF |
Stock: 2850
Distributors
pcbx
pcbxUnit Price$0.54739
Ext.Price$0.54739
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.54739 | $0.54739 |
| 10 | $0.42307 | $4.23070 |
| 25 | $0.37994 | $9.49850 |
| 50 | $0.34121 | $17.06050 |
| 100 | $0.30642 | $30.64200 |
| 300 | $0.28663 | $85.98900 |
| 500 | $0.26811 | $134.05500 |
| 1000 | $0.24978 | $249.78000 |
